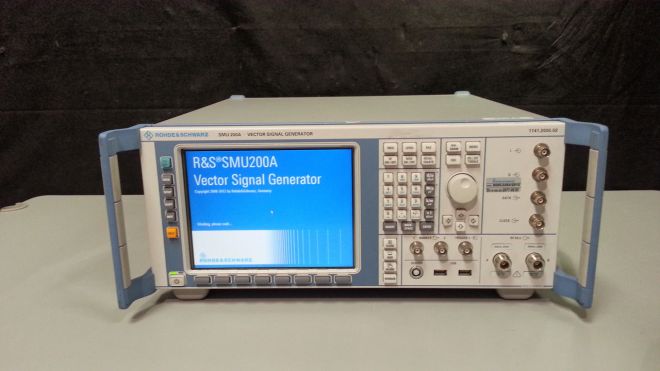

儀器名稱: R&S?SMU200A信號發生器---徐經理18912657535 儀器型號: SMU200A 儀器品牌: R&S 儀器指標: 100 kHz 至 2.2/3/4/6 GHz
由于采用了模塊化設計，R&S®SMU200A可充分滿足多種使用要求。第一條RF通道可配備四種可用頻率選件中的一種，用戶可選擇頻率上限2.2 GHz / 3 GHz / 4 GHz 或 6 GHz。另外，第二條RF通道還可分別安裝2.2 GHz和3 GHz的上限頻率。所有選擇頻率選件的下限是100 kHz。
基帶部分還可以同時安裝兩個信號發生器，它們可以實時產生復雜信號，并且配備有一個任意波形發生器，可提128Msample的I和Q信號(512Mbyte)存儲空間。不同基帶產生的信號可以相加。每個信號都可以進行頻率偏移?？蛇x配40條衰落的衰落模擬器，以模擬多徑傳播。
R&S®SMU200A可以配備多種選件，例如所有當今數字標準測量選件和功能性能提升選件，例如MIMO衰落或相位相干。關于所有可用選件和各個選件詳細介紹的連接，請參見“訂購信息”。
R&S®SMU200A采用現代直覺式操作理念，操作起來既快捷又容易。
包含兩個信號發生器
? 第一條射頻通道的頻率選擇范圍是100 kHz 到2.2 GHz/3 GHz/4 GHz/6 GHz
? 可選擇上限為2.2GHz或3GHz的第二條射頻通道
? 提供兩條完整的基帶通道
? 在數字域內可無遺漏的合并各種基帶信號（例如用于多種標準基站的測試）
的信號質量
? I/Q 調制器射頻帶寬高達 200 MHz
? 單邊帶相位噪聲，典型值只有-135 dBc (f = 1 GHz, 20 kHz 載波偏置, 1 Hz 測量帶寬)。 采用增強相位噪聲性能時典型值為 -139 dBc
? 寬帶噪聲典型值為 -153 dBc (CW, f = 1 GHz, >10 MHz 載波偏置, 1 Hz 測量帶寬)
? 出色的ACLR，3GPP FDD時典型值為+70 dB
? 2 x 2 MIMO ，可實時衰落
? 可兩臺儀器組合使用2×4或 4×2 MIMO
? 可選配高達40條衰落路徑的衰落模擬器
? 支持EUTRA/LTE FDD 和 TDD信號產生
? 支持 WiMAX? IEEE 802.16-2004/Corr1-2005、802.16e-2005 和 WiBro
? 四條用于 3GPP FDD的實時碼道，支持HSDPA和HSUPA
? 數據幀可混合，一個幀內可同時包含GSM、EDGE和EGPRS2時隙（每個幀的符號率相同）
? 基帶信號發生器帶有通用編碼器，可實時生成信號
? 任意波形發生器分為16 Msamples、 64 Msamples 或 128 Msamples三種
? R&S®WinIQSIM2? 和 R&S®WinIQSIM?仿真軟件支持任意波形發生器
直觀的操作
? 彩色顯示屏的像素為800 × 600（SVGA格式）
? 直覺式用戶界面，可顯示信號流圖形（框圖）
? 通過內置瞬態記錄儀顯示基帶信號圖形
? 上下文感應幫助系統
產品制造的理想之選
? 頻率和電平設置時間非常短 (<2 ms)
? 電子衰減器在整個電平范圍內頻率6GHz
? 采用射頻列表模式和多段波形可靈活的進行高速測量
? 由于將兩個完整的信號發生器合在一起，機箱高度只有四個高度單位高，因而占用空間極小
連接性
? 可選配數字I/Q輸入和輸出：支持R&S®EX-IQ-Box 靈活數據格式和時鐘信號生成
? 支持R&S®NRP功率探頭
? 通過LAN（千兆以太網、VXI11）和GPIB實現遠程控制
? 通過遠程桌面或VNC遠程操作
? 用戶可選擇觸發和標記信號
? 鍵盤、鼠標和記憶棒連接USB連接器
? 滿足LXI Class C標準
直觀操作

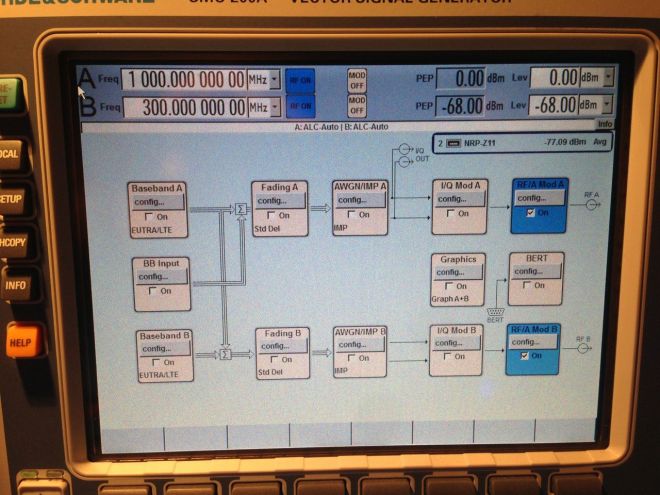

R&S®SMU200A具有現代用戶界面，可清晰顯示從基帶到射頻輸出整個過程的信號流框圖。每個方框代表一個儀器功能單元，所生成信號的情況一目了然，其中包括是否被加性高斯白噪聲和/或衰落干擾。
該例子中R&S®SMU200A 矢量信號發生器生成了一個 LTE 2x2 MIMO信號
該例子中一臺R&S®SMU200A 矢量信號發生器生成了兩種電信標準的信號：在上行鏈路生成了一個LTE信號和加性噪聲，在下行鏈路生成了一個衰落Wcdma信號
100 MHz、850 MHz、2.1 GHz 和 5.7 GHz頻率下使用內部參考振蕩器時的典型單邊帶相位噪聲（未使用低相位噪聲選件）
為了不妨礙相鄰信道信號的傳輸，3GPP基站放大器要求要有的鄰道泄漏比(ACLR)性能。為了更好的對該性能進行測試，信號發生器的ACLR特性必須優于放大器的ACLR特性。在這種情況下，同一頻率范圍內需要放大的信號就不止一個，而是有幾個相鄰信號需要放大。這樣在測量此類放大器時。
R&S®SMU200A
Order No. 1141.2005.02
R&S®SMU200A Vector Signal Generator Vector Signal Generator
The art of signal generation
High-end instrument with excellent performance, optional second RF and baseband path and fading simulator.
including power cable, Quick Start Guide and CD-ROM (with operating and service manual)
The base unit can only be ordered together with an R&S® SMU-B10x frequency option.
RF path A
R&S®SMU-B102
Order No. 1141.8503.02
100 kHz to 2.2 GHz
R&S®SMU-B103
Order No. 1141.8603.02
100 kHz to 3 GHz
R&S®SMU-B104
Order No. 1141.8703.02
100 kHz to 4 GHz
R&S®SMU-B106
Order No. 1141.8803.02
100 kHz to 6 GHz
R&S®SMU-B20
Order No. 1142.0006.02
FM/φM Modulator
R&S®SMU-B22
Order No. 1160.5006.02
FM/φM Modulator and Low Phase Noise
R&S®SMU-B31
Order No. 1159.8011.04
High-Power Output
RF path B
R&S®SMU-B202
Order No. 1141.9400.02
100 kHz to 2.2 GHz
R&S®SMU-B203
Order No. 1141.9500.02
100 kHz to 3 GHz
R&S®SMU-B36
Order No. 1160.1000.04
High-Power Output
Other RF Options
R&S®SMU-B90
Order No. 1409.8604.02
Phase Coherence
Baseband
R&S®SMU-B9
Order No. 1161.0766.02
Baseband Generator with ARB (128 Msamples) and Digital Modulation (realtime)
R&S®SMU-B10
Order No. 1141.7007.02
Baseband Generator with ARB (64 Msamples) and Digital Modulation (realtime)
R&S®SMU-B11
Order No. 1159.8411.02
Baseband Generator with ARB (16 Msamples) and Digital Modulation (realtime)
R&S®SMU-B13
Order No. 1141.8003.04
Baseband Main Module
R&S®SMU-B16
Order No. 1161.0066.02
Differential I/Q out
R&S®SMU-B17
Order No. 1142.2880.02
Baseband input (analog/digital)
R&S®SMU-B18
Order No. 1159.6954.02
Digital Baseband Output
Digital Modulation Systems
R&S®SMU-K40
Order No. 1160.7609.02
Digital Standard GSM / EDGE
R&S®SMU-K41
Order No. 1408.7810.02
Digital Standard EDGE Evolution
R&S®SMU-K42
Order No. 1160.7909.02
Digital Standard 3GPP FDD
R&S®SMU-K43
Order No. 1160.9660.02
3GPP FDD Enhanced MS/BS Tests incl. HSDPA
R&S®SMU-K44
Order No. 1161.0566.02
Digital Standard GPS
R&S®SMU-K45
Order No. 1161.0666.02
Digital Standard 3GPP FDD HSUPA
R&S®SMU-K46
Order No. 1160.9876.02
Digital Standard CDMA2000® incl. 1xEV-DV
R&S®SMU-K47
Order No. 1408.7410.02
Digital Standard 1xEV-DO
R&S®SMU-K48
Order No. 1161.0266.02
Digital Standard IEEE 802.11 (a/b/g)
R&S®SMU-K49
Order No. 1161.0366.02
Digital Standard IEEE 802.16
R&S®SMU-K50
Order No. 1161.0966.02
Digital Standard TD-SCDMA
R&S®SMU-K51
Order No. 1161.1062.02
Digital Standard Enhanced TD-SCDMA
R&S®SMU-K52
Order No. 1408.7010.02
Digital Standard DVB-H / DVB-T
R&S®SMU-K53
Order No. 1400.6209.02
Digital Standard DAB / T-DMB
R&S®SMU-K54
Order No. 1408.7562.02
Digital Standard IEEE 802.11n
R&S®SMU-K55
Order No. 1408.7310.02
Digital Standard EUTRA/LTE
R&S®SMU-K56
Order No. 1161.1162.02
Digital Standard XM RADIO
R&S®SMU-K57
Order No. 1400.6250.02
Digital Standard FM Stereo/RDS
R&S®SMU-K58
Order No. 1408.7910.02
Digital Standard Sirius Digital Radio
R&S®SMU-K59
Order No. 1415.0001.02
Digital Standard HSPA+
R&S®SMU-K60
Order No. 1408.7962.02
Digital Standard Bluetooth® EDR
R&S®SMU-K61
Order No. 1160.8505.02
Multicarrier CW Signal Generation
R&S®SMU-K65
Order No. 1415.0053.02
Assisted GPS
R&S®SMU-K68
Order No. 1408.8217.02
Digital Standard TETRA Release 2
R&S®SMU-K69
Order No. 1408.8117.02
LTE Closed-Loop BS Test
R&S®SMU-K81
Order No. 1408.8169.02
LTE Logfile Generation
R&S®SMU-K84
Order No. 1408.8475.02
LTE Release 9 + Enhanced Features
R&S®SMU-K85
Order No. 1408.8498.02
LTE Release 10 / LTE-Advanced
R&S®SMU-K86
Order No. 1408.8552.02
Digital Standard IEEE 802.11ac
R&S®SMU-K87
Order No. 1408.8675.02
1x EV-DO Rev. B
Digital Modulation Systems using R&S® WinIQSIM2?
R&S®SMU-K240
Order No. 1408.5518.02
Digital Standard GSM/EDGE
R&S®SMU-K241
Order No. 1408.7862.02
Digital Standard EDGE Evolution
R&S®SMU-K242
Order No. 1408.5618.02
Digital Standard 3GPP FDD
R&S®SMU-K243
Order No. 1408.5718.02
3GPP Enhanced MS/BS Tests incl. HSDPA
R&S®SMU-K244
Order No. 1408.5818.02
Digital Standard GPS
R&S®SMU-K245
Order No. 1408.5918.02
3GPP FDD HSUPA
R&S®SMU-K246
Order No. 1408.6014.02
Digital Standard CDMA2000® incl. 1xEV-DV
R&S®SMU-K247
Order No. 1408.7462.02
Digital Standard 1xEV-DO Rev. A
R&S®SMU-K248
Order No. 1408.6114.02
Digital Standard IEEE 802.11 (a/b/g)
R&S®SMU-K249
Order No. 1408.6214.02
Digital Standard IEEE 802.16
R&S®SMU-K250
Order No. 1408.6314.02
Digital Standard TD-SCDMA
R&S®SMU-K251
Order No. 1408.6414.02
TD-SCDMA Enhanced BS/MS Tests
R&S®SMU-K252
Order No. 1408.7510.02
Digital Standard DVB-H/DVB-T
R&S®SMU-K253
Order No. 1408.8317.02
Digital Standard DAB/T-DMB
R&S®SMU-K254
Order No. 1408.7610.02
Digital Standard IEEE 802.11n
R&S®SMU-K255
Order No. 1408.7362.02
Digital Standard LTE/EUTRA
R&S®SMU-K259
Order No. 1415.0101.02
Digital Standard HSPA+
R&S®SMU-K260
Order No. 1408.8017.02
Digital Standard Bluetooth EDR
R&S®SMU-K261
Order No. 1408.6514.02
Multicarrier CW Signal Generation
R&S®SMU-K262
Order No. 1400.6609.02
Additional white Gaussian noise (AWGN)
R&S®SMU-K266
Order No. 1408.8630.02
Galileo
R&S®SMU-K268
Order No. 1408.8269.02
Digital Standard TETRA Release 2
R&S®SMU-K284
Order No. 1408.8517.02
LTE Release 9 + Enhanced Features
R&S®SMU-K285
Order No. 1408.8530.02
LTE Release 10 / LTE-Advanced
R&S®SMU-K286
Order No. 1408.8575.03
IEEE 802.11ac
R&S®SMU-K287
Order No. 1408.8698.02
1x EV-DO Rev. B
R&S®SMU-K294
Order No. 1408.8617.02
Glonass
Digital Modulation Systems using external PC Software
R&S®SMU-K6
Order No. 1408.7662.02
Pulse Sequencer
Fading
R&S®SMU-B14
Order No. 1160.1800.02
Fading Simulator
R&S®SMU-B15
Order No. 1160.2288.02
Fading Simulator Extension
R&S®SMU-K71
Order No. 1160.9201.02
Dynamic fading and enhanced resolution
This option enables the improved time resolution for the fading pathes from 10 ns down to 10 ps.
R&S®SMU-K72
Order No. 1408.7062.02
Extended Statistic Functions
R&S®SMU-K74
Order No. 1408.7762.02
MIMO fading
R&S®SMU-K77
Order No. 1408.8598.02
Dynamic Scenario Simulation
Noise
R&S®SMU-K62
Order No. 1159.8511.02
Additive White Gaussian Noise (AWGN)
Other Options
R&S®SMU-K80
Order No. 1159.8770.02
BER/BLER Measurement
R&S®SMU-B81
Order No. 1159.9001.02
Rear panel connectors for 1st RF path
R&S®SMU-B82
Order No. 1159.9501.02
Rear pannel connectors for 2nd RF path
R&S®SMU-K256
Order No. 1161.1240.02
Playback of XM Radio Waveforms
R&S®SMU-K352
Order No. 1408.8069.02
HD Radio? Test waveforms
(iBiquity license required;
HD RadioTM is a proprietary trademark of iBiquity Digital Corp.)
R&S®SMU-K353
Order No. 1408.8652.02
DAB+ Streams
R&S®SMU-K354
Order No. 1408.8717.02
T-DMB/DAB Streams
Recommended Extras
SMU200A-Manual_German
Order No. 1007.9845.31
R&S®SMU200A - Hardcopy Manuals (in German)
SMU200A-Manual_English,UK
Order No. 1007.9845.32
R&S®SMU200A - Hardcopy Manuals (in English, UK)
SMU200A-Manual_English,USA
Order No. 1007.9845.39
R&S®SMU200A - Hardcopy Manuals (in English, USA)
R&S®PSL-Z2
Order No. 1157.6870.04
USB Keyboard (US character set)
R&S®ZZA-T45
Order No. 1109.3774.00
Adapter for Telescopic Sliders
R&S®SMU-Z5
Order No. 1160.4545.02
BNC Adapter Board for AUX I/O Connector
R&S®PSL-Z10
Order No. 1157.7060.04
Optical mouse with USB Interface
R&S®ZZA-411
Order No. 1096.3283.00
R&S®ZZA-411 19" Rack Adapter 19" Rack Adapter
